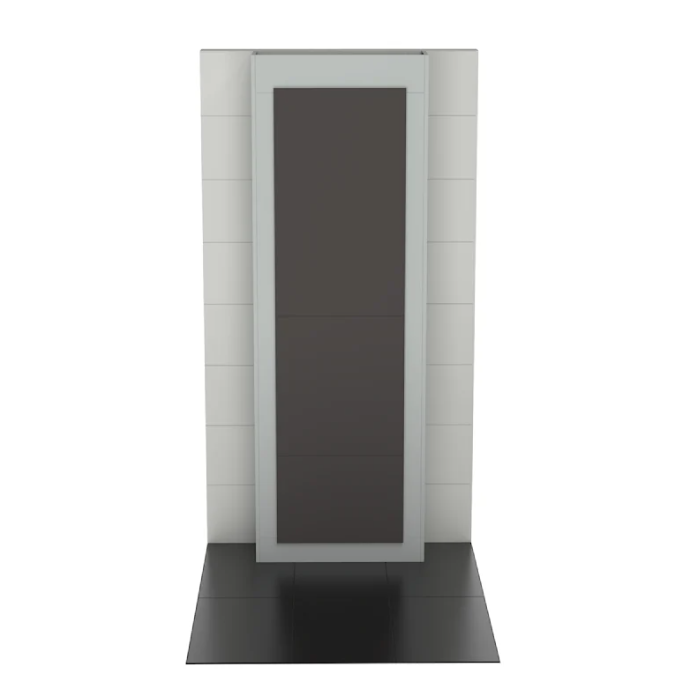

Single Set IPS Unit - Freestanding - Smart Range

Freestanding · Made to measure

Smart Range MFC IPS Unit – Single Set Freestanding IPS Unit – offers a practical, durable and hygienic solution for commercial, public and hospitality washrooms. Designed as a...

Read more

Smart Range MFC IPS Unit – Single Set Freestanding IPS Unit – offers a practical, durable and hygienic solution for commercial, public and hospitality washrooms. Designed as a freestanding configuration, the unit sits independently between fixings without relying on adjacent corner walls, giving full flexibility for open or island washroom layouts. Manufactured from moisture-resistant 18mm melamine-faced chipboard (MFC) with a decorative finish on both sides, it delivers a clean, high-quality appearance with dependable day-to-day performance. Panels are finished with 2mm ABS impact-resistant edging for added durability, and satin anodised aluminium (SAA) fittings are supplied as standard to provide a robust, professional finish.

Specification / Key Features:

System: K32 IPS Panel System / MFC Manufacturer: Bridgewater Laminate Products Ltd Product Reference: Smart Range MFC IPS Units

Material / Panels: Melamine faced chipboard (MFC), decorative finish both sides Panel Thickness: 18mm Edge Treatment: 2mm ABS edging

Configuration: Single Set Freestanding IPS Unit

Typical configuration:

Overall Height: 1950mm Depth: 250mm Floor Clearance: 150mm

Panel Colour / Finish: Client selection

Fittings: Satin Anodised Aluminium (SAA) included as standard

Location: Refer to Architect's drawings / site layout

Any queries, please email the team at sales@bridgewaterdirect.co.uk

£450.00 Exc VAT £540.00 inc VAT
Free UK delivery — typical 3–5 working days | UK manufactured since 1995
Trusted by NHS, schools, councils & leisure
Order placed Today
Manufacture 1–2 working days
Dispatched Tracked UK
Delivered 3–5 working days
Single Set IPS Unit - Freestanding - Smart Range

Colours

Pre-set heights for the middle and bottom panels — the top panel grows to fit your overall height.

Panel colour

Shadow / frame colour

Choose panel and surround finishes independently.

Measurements

Total external width including the 85mm surround frame on each side. Snaps to 50mm increments.
Total external height including the 85mm frame top and bottom. The top panel grows to fit; middle & bottom stay fixed.
How deep the duct goes back into the wall.
Diagram labels update live as you type — shape stays the same so you can compare at a glance.

Summary

Your breakdown
    Anything we should know — delivery access, install date, special cut requests.

    Each IPS panel is made to order from your measurements — please double-check dimensions before submitting. As a bespoke item, the 14-day returns right does not apply.

    ✓ Free UK delivery · Dispatched in 3-5 working days
    Overview & Specifications
    Single Set IPS Unit - Freestanding - Smart Range
    Freestanding · Integrated Plumbing System (IPS) duct panel
    LayoutFreestanding
    Surround frame85mm all-round
    Default size (overall)850mm × 2400mm
    Default panel face600mm wide
    Default depth150mm
    • Supplied cut and edged to your dimensions
    • 1mm ABS edging on all exposed edges
    • SAA (Satin Anodised Aluminium) trims included
    • Moisture-resistant MFC core
    1. Colours — pick your panel finish.
    2. Measurements — enter overall size, panel face width & depth.
    3. Review & Order — check your cut-list and add to basket.
    The diagram is a schematic — its proportions don't change, but the dimension labels update live with your inputs.

    Common questions

    How long before my IPS panel is delivered?
    Most orders are manufactured within 1–2 working days and delivered to UK mainland within 3–5 working days on a tracked service.
    Does the panel come ready to fit?
    Yes — panels are supplied cut, edged and pre-finished with the 85mm surround frame. Fixings and a simple installation guide are included.
    Is the panel moisture-resistant?
    Standard IPS core is moisture-resistant MFC suitable for most commercial washrooms. For wet-room or shower-proof builds please contact us before ordering.
    Can I get a sample colour before I order?
    Yes — samples can be posted out on request. Drop us an email with the colours you'd like to compare.
    What if my measurements are out slightly?
    The 85mm surround frame absorbs small discrepancies (typically ±5mm). For anything bigger, call us before ordering.
