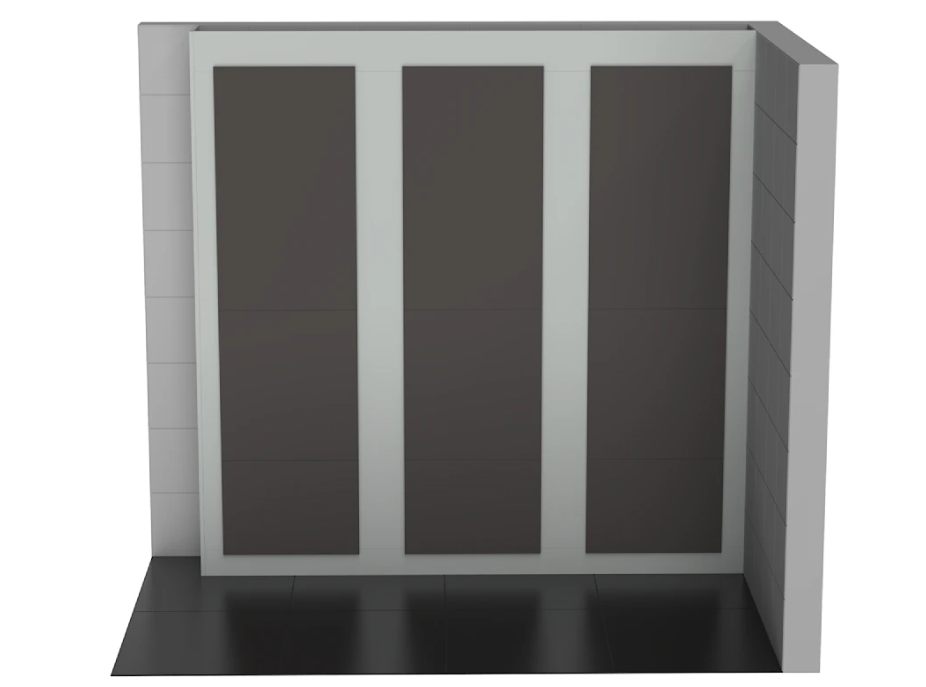

Triple Set IPS Unit - Into Right Corner - Smart Range

Into right corner · Made to measure

Adjustable overall height typically 2400mm–2750mm in our planner — designed for circa 2400 mm ceiling installs and above. The visible IPS face panel is fixed at 650 mm wide here; widen the alcove/overall span and the extra runs into the side shadow returns rather than widening the MFC face (diagram updates live).

Smart Range MFC IPS Unit – Triple Set IPS Unit – Into Right Corner – Budget MFC Range offers a practical, durable and hygienic solution for commercial, public...

Read more

Smart Range MFC IPS Unit – Triple Set IPS Unit – Into Right Corner – Budget MFC Range offers a practical, durable and hygienic solution for commercial, public and hospitality washrooms. Supplied with the frame pre-assembled and panels pre-attached, the unit is designed to reduce installation time on site and ensure a consistent, factory-aligned finish.

Manufactured from moisture-resistant 18mm melamine-faced chipboard (MFC) with a decorative finish on both sides, it delivers a clean, high-quality appearance with dependable day-to-day performance. Panels are finished with 2mm ABS impact-resistant edging for added durability, and satin anodised aluminium (SAA) fittings are supplied as standard to provide a robust, professional finish.

Side shadow gaps are supplied loose, allowing them to be scribed to suit site conditions where required, ensuring a clean fit even on uneven walls or out-of-square spaces.

Specification / Key Features:

System: K32 IPS Panel System / MFC
Manufacturer: Bridgewater Laminate Products Ltd
Product Reference: Smart Range MFC IPS Units

Material / Panels: Melamine faced chipboard (MFC), decorative finish both sides
Panel Thickness: 18mm
Edge Treatment: 2mm ABS edging

Configuration: Triple Set IPS Unit – Into Right Corner

Typical configuration:

  • Overall Height: 1950mm
  • Depth: 250mm (per side where applicable)
  • Floor Clearance: 150mm

Panel Colour / Finish: Client selection

Fittings: Satin Anodised Aluminium (SAA) included as standard

Location: Refer to Architect's drawings / site layout

Any queries, please email the team at sales@bridgewaterdirect.co.uk

£850.00 Exc VAT £1,020.00 inc VAT
Free UK delivery — typical lead time 8–10 working days | UK manufactured since 1995
Trusted by NHS, schools, councils & leisure
Order placed Today
Manufacture 1–2 working days
Dispatched Tracked UK
Delivered 8–10 working days
Triple Set IPS Unit - Into Right Corner - Smart Range

Panel configuration

Pre-set heights for the middle and bottom panels — the top panel grows to fit your overall height.
Next step: choose panel and frame colours.

Colours

Panel colour

Shadow / frame colour

Choose panel and surround finishes independently.
Screen colours & hex codes are indicative only — monitor variation is normal; request a physical sample before final sign-off.

Measurements

Total wall opening — corner-to-feature distance. The 650 mm face width stays fixed in this planner; balance is in the returns/shadows as drawn. Snaps to 50mm increments.
Total external height including the 85mm frame top and bottom. Adjustable in this planner from 2400mm to 2750mm (ideal when you have at least ~2.4 m ceiling-to-floor clearance). Middle & bottom panel heights stay on the preset; the top row grows/shrinks to suit.
How deep the duct goes back into the wall. Minimum 150 mm in this planner.
Diagram labels update live as you type — shape stays the same so you can compare at a glance.

Summary

Your breakdown
    Anything we should know — delivery access, install date, special cut requests.

    Each IPS panel is made to order from your measurements — please double-check dimensions before submitting. As a bespoke item, the 14-day returns right does not apply.

    ✓ Free UK delivery · Typical lead time 8–10 working days
    Overview & Specifications
    Triple Set IPS Unit - Into Right Corner - Smart Range
    Into right corner · Integrated Plumbing System (IPS) duct panel
    Planner height range2400mm–2750mm overall
    LayoutInto right corner
    Surround frame85mm all-round
    Default size (overall)2550mm × 2400mm
    Default panel face600mm wide
    Default depth150mm
    • Supplied cut and edged to your dimensions
    • 1mm ABS edging on all exposed edges
    • SAA (Satin Anodised Aluminium) trims included
    • Moisture-resistant MFC core
    1. Configuration — choose toilet, WHB or urinal panel split.
    2. Colours — pick your panel finish and shadow/frame colour.
    3. Measurements — enter overall size and depth.
    4. Review & Order — check your cut-list and add to basket.
    The diagram is a schematic — its proportions don't change, but the dimension labels update live with your inputs.

    Common questions

    How long before my IPS panel is delivered?
    Most orders are manufactured within a few working days and delivered to UK mainland within 8–10 working days on a tracked service.
    Does the panel come ready to fit?
    Yes — panels are supplied cut, edged and pre-finished with the 85mm surround frame. Fixings and a simple installation guide are included.
    Is the panel moisture-resistant?
    Standard IPS core is moisture-resistant MFC suitable for most commercial washrooms. For wet-room or shower-proof builds please contact us before ordering.
    Can I get a sample colour before I order?
    Yes — samples can be posted out on request. Drop us an email with the colours you'd like to compare.
    What if my measurements are out slightly?
    The 85mm surround frame absorbs small discrepancies (typically ±5mm). For anything bigger, call us before ordering.
