Laminate Worktop with Integral Coved UpstandCut to Size

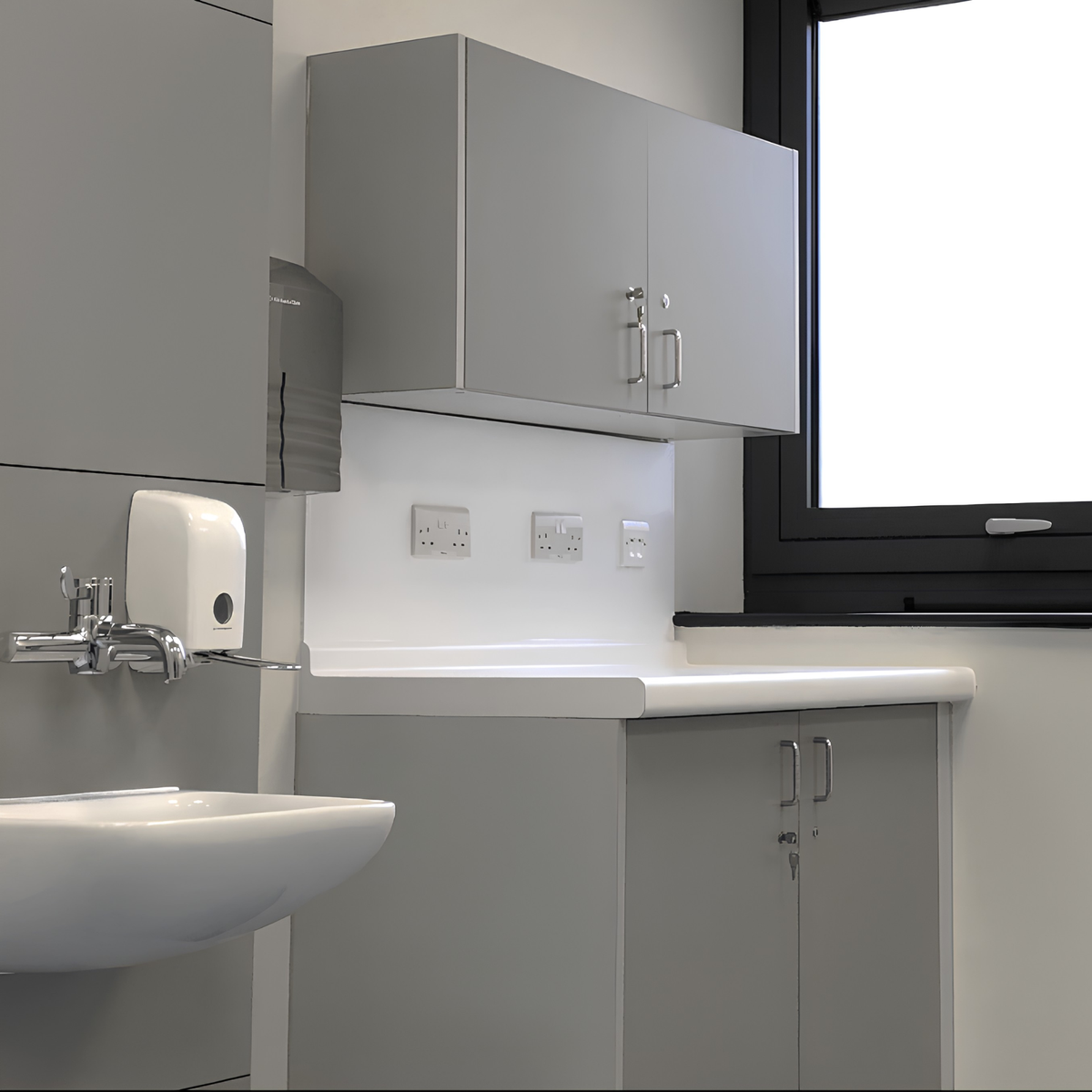

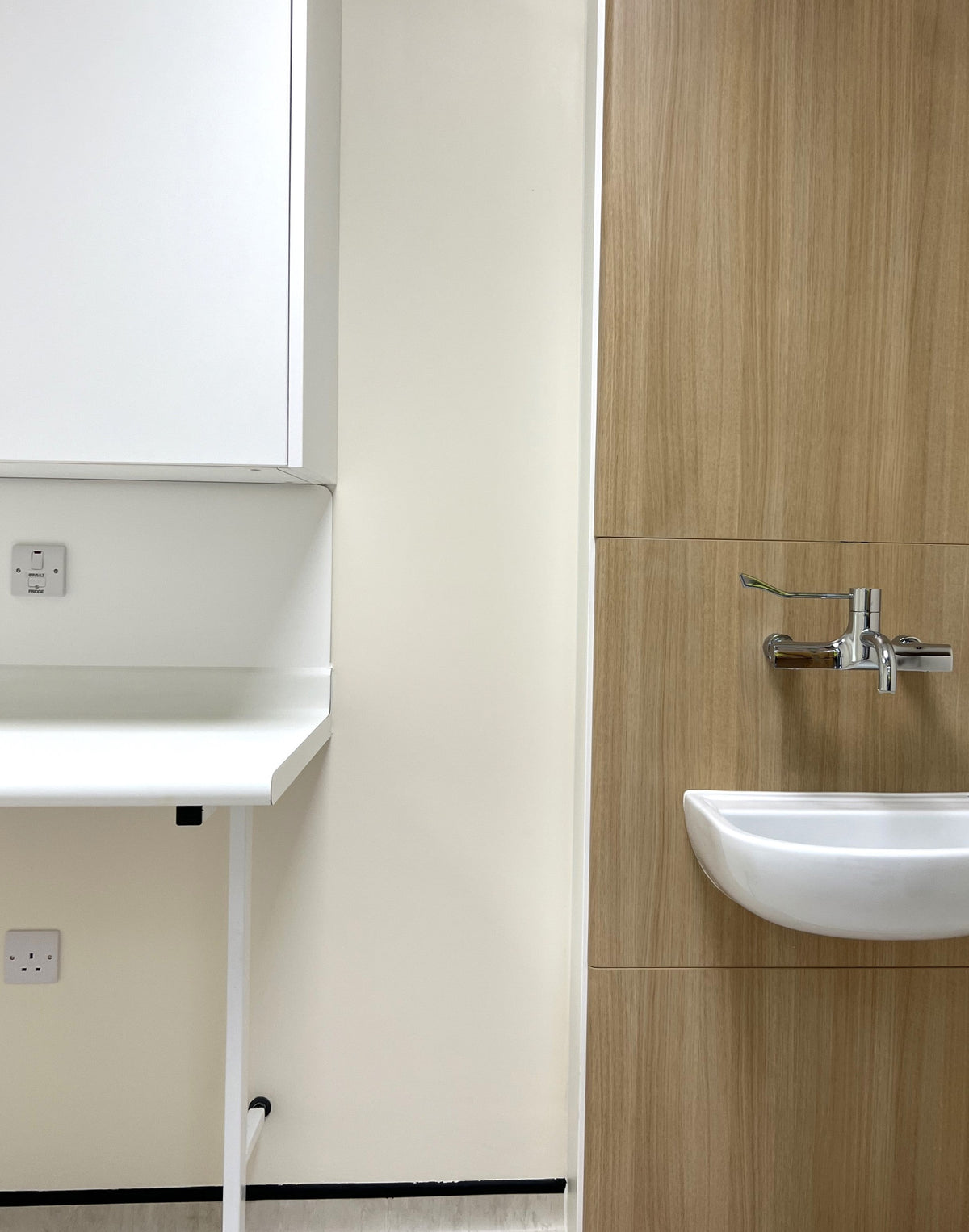

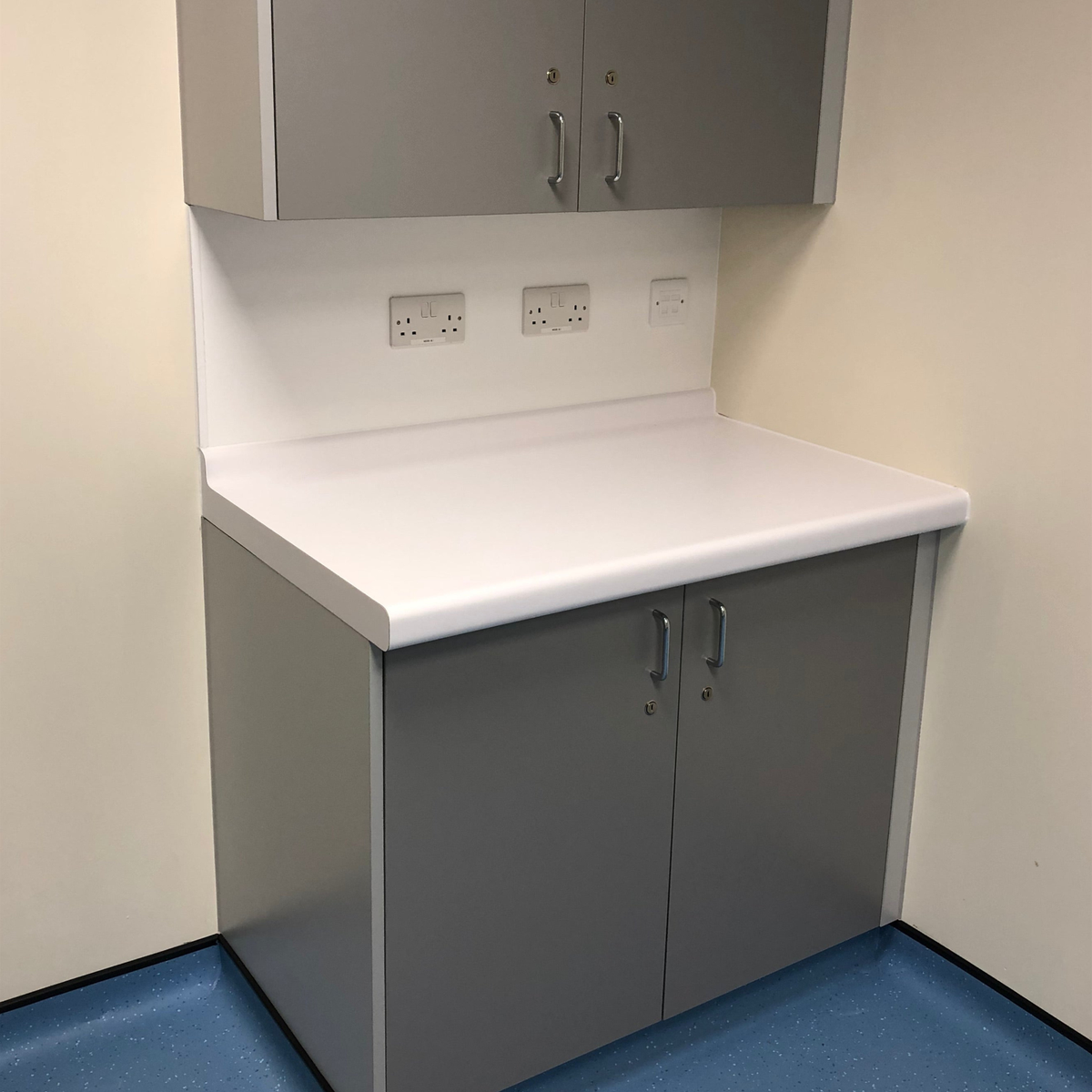

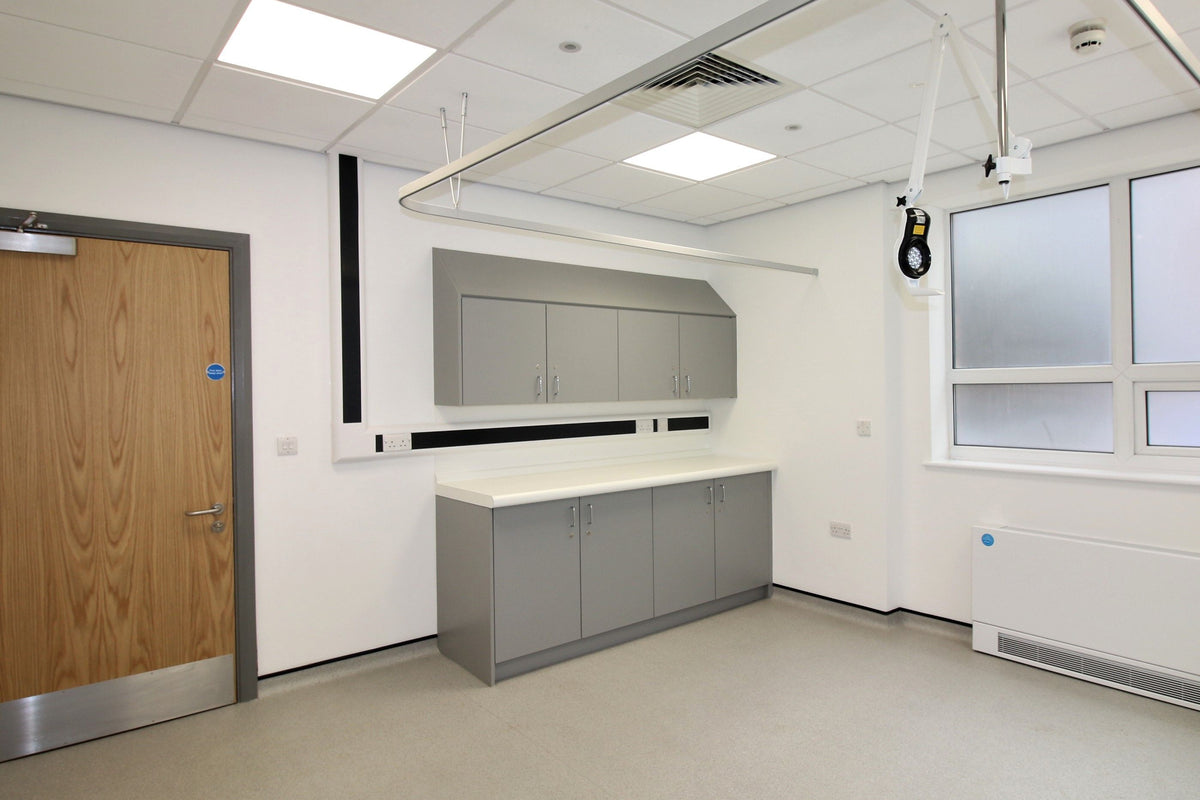

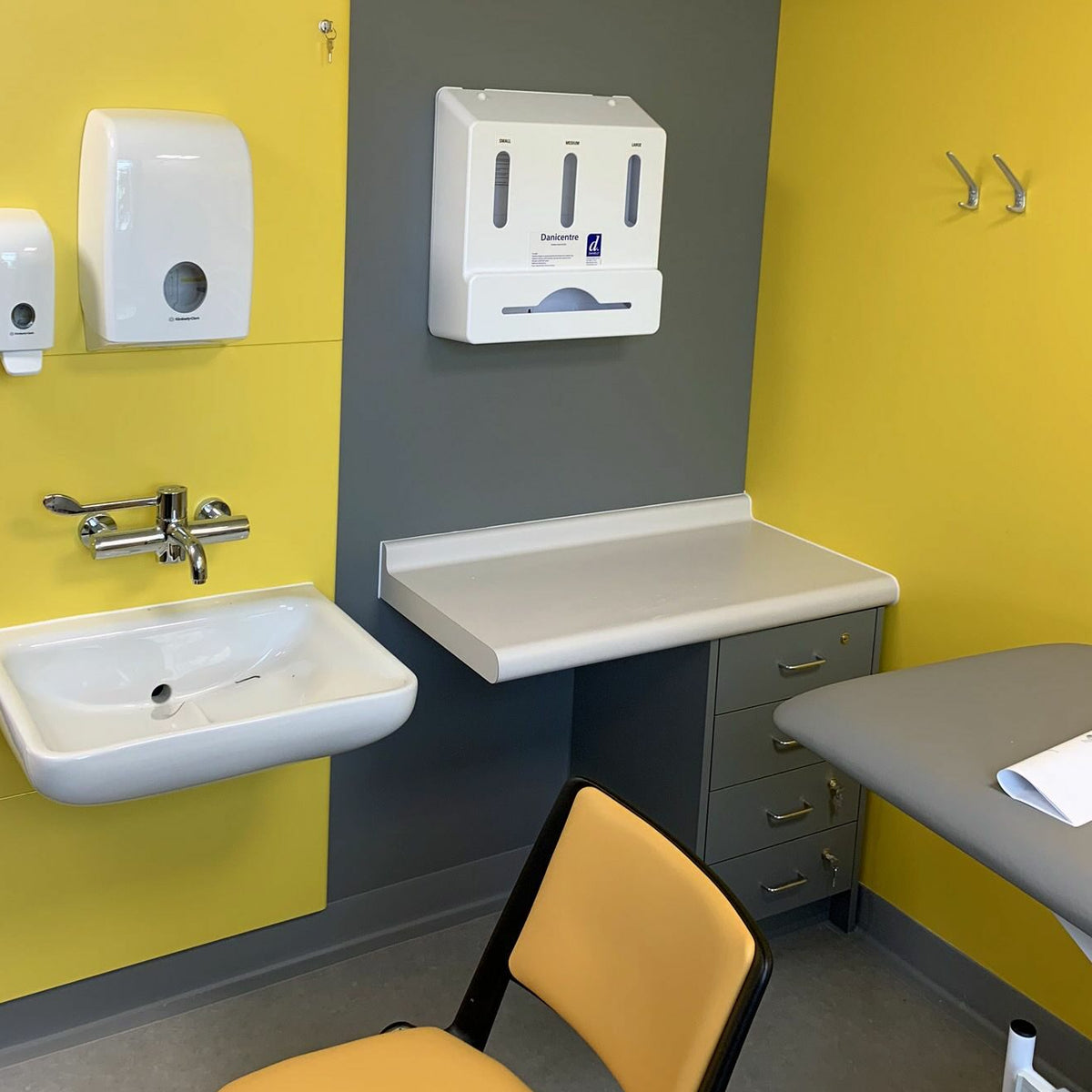

Example installation. Your selected finish is shown in the drawings.
A laminate worktop with a 75mm integral coved upstand, made to your exact size. The coved upstand is formed in one piece, so there is no seam at the back edge to trap dirt or moisture — the detail that makes a worktop quick to clean down in laboratories, treatment rooms, clinical WCs and wash areas.
Built on a 40mm chipboard core faced in high-pressure laminate, capped at both ends, in six stocked colours. Widths from 400mm to 2900mm and depths from 400mm to 900mm, cut to the millimetre. Manufactured in our Bolton workshop with free UK mainland delivery.
Full specification
How this compares to an HTM 63 worktop
HTM 63 is the NHS reference for hygienic worktop and wall-junction detailing. This worktop is built to the same practical shape — a one-piece coved upstand, a non-porous wipe-clean surface, made to your room dimensions — at a lower cost, because the core construction is different. It is not supplied as an HTM 63 product. If your specification names HTM 63, order our HTM 63 worktop instead.
Typical applications
- Laboratories and clean working areas
- Clinical WCs and wash areas
- Treatment and consulting rooms
- School and college science rooms
- Staff kitchens, utility areas and preparation benches
What you get
- 40mm chipboard core faced in high-pressure laminate
- 75mm integral coved upstand formed in one piece
- Both ends capped
- Cut to the millimetre
- Six stocked colours
- Free UK mainland delivery
- 1 Colour
- 2 Measurements
- 3 Review
Step 1 of 3Step 1
Choose your colour
Step 2 of 3Step 2
Enter your measurements
–mm, wall to wall
–mm, including the upstand
Your price
Example drawing (). It changes to your worktop once you enter a valid width and depth.
Drawn to scale from your sizes. Both ends capped. 40mm core, 75mm integral upstand. Tap a drawing to enlarge it; the front elevation is in the full-screen view.
Product information
Product specification
| Core | 40mm chipboard |
|---|---|
| Surface | High-pressure laminate (HPL) |
| Rear upstand | 75mm, integral |
| Ends | Capped both ends |
| Width | 400–2900mm, to the millimetre |
| Depth | 400–900mm, to the millimetre |
| Colours | BD White, BD Dove Grey, BD Graphite, BD Natural Oak, BD Pearl Stone, BD Slate Stone |
What's included
- One-piece coved upstand — no seam at the back edge to trap dirt or moisture
- Non-porous high-pressure laminate, suitable for frequent cleaning
- 40mm chipboard core, both ends capped
- Made to your room dimensions, cut to the millimetre
- Six stocked colours
Delivery and installation
Free delivery to the UK mainland, 5–7 working days. Made in our factory in Bolton, Greater Manchester.
We manufacture and supply the worktop; your fitter or joiner fixes it in position and seals it to the wall.
Specification downloads
One-page NBS N10 specification for architects and contractors, ready to copy into a project specification.
Read the guide: What is HTM 63 and how does it relate to worktops?
Need a different style of worktop, see our collection here
Common Questions
Is this an HTM 63 worktop?
No. This is a laminate worktop with an integral coved upstand, built to the same practical shape as an HTM 63 worktop but not supplied as an HTM 63 product. If your specification names HTM 63, order our HTM 63 worktop instead.
What's the difference between this and your HTM 63 worktop?
Construction. This worktop has a 40mm chipboard core faced in high-pressure laminate with a 75mm coved upstand. The HTM 63 worktop has a 55mm core with a 50mm upstand and is supplied as an HTM 63 product. If your specification names HTM 63, choose the HTM 63 worktop.
What is a coved upstand?
A curved junction between the worktop surface and the upstand, formed in one piece so there is no seam at the back edge to trap dirt or moisture.
Is it suitable for laboratories and clinical areas?
It suits areas where a seamless back junction and a wipe-clean surface matter, such as laboratories, treatment rooms and wash areas. It is not supplied as an HTM 63 worktop and carries no hygiene certification, so check it against your project specification before ordering.
What sizes can I order?
Widths from 400mm to 2900mm and depths from 400mm to 900mm, to the millimetre.
What is it made from?
A 40mm chipboard core faced in high-pressure laminate, with a 75mm integral coved upstand and both ends capped.
How do I measure for a run of worktop?
Measure wall to wall at the back, then front to back at the deepest point. Send us your measurements and any cut-outs and we will confirm the detail before manufacture.
Can I order more than one worktop?
Yes. Use "Add another worktop" to build several sizes into one order.
What colours are available?
Six: BD White, BD Dove Grey, BD Graphite, BD Natural Oak, BD Pearl Stone and BD Slate Stone.
