Half Height IPS Panel System | Made to Measure | Dry, Damp and Wet | 1–6 Sets

£300.00 exc VAT

Standard IPS · Dry environments · Half height

Half height · In-between Walls · Made to measure Free UK delivery · 4–6 working days · Made in Bolton since 1998

Need help choosing? Call 0161 703 3980

Layout & number of sets

Choose how many IPS sets you need (1–6), then your installation configuration. Price and product image update instantly.

Number of sets
Installation configuration
What do these configurations mean?
In-between Walls
Fits between two existing walls — measure the clear alcove span.
Freestanding
Self-supporting with end returns; can stand away from walls.
Into Left Corner
Fixes to the left wall; open on the right.
Into Right Corner
Fixes to the right wall; open on the left.
L-shape (Left / Right Corner)
Wraps a corner: the larger half of the sets runs along the back wall and the rest along the left or right return wall. Available for 4, 5 or 6 sets.
Price updates when you change layout or set count. Next: choose WC (Toilet) or Urinal.

Fixture type

Choose whether this IPS run is for WC (toilet) or urinal bays. The same fixture type applies to every set in the order — the diagram updates to match.

Fixture type
Next step: choose panel and frame colours.

Colours

Panel colour

Shadow / frame colour

Choose panel and surround finishes independently.
Screen colours & hex codes are indicative only — monitor variation is normal; request this range's sample chart before final sign-off.

Measurements

Snaps to 50mm increments.
Floor to the top of the capping. Adjustable in this planner from 1250mm to 1500mm. The strip under the capping takes whatever the panel heights below leave.
Panel heights (mm)
How deep the duct goes back into the wall. Minimum 150 mm in this planner.
Diagram labels update live as you type — shape stays the same so you can compare at a glance.

Summary

Your breakdown
    Anything we should know — delivery access, install date, special cut requests.

    Each IPS panel is made to order from your measurements — please double-check dimensions before submitting. As a bespoke item, the 14-day returns right does not apply.

    £300.00 exc VAT
    ✓ Free UK delivery · Typical lead time 4–6 working days

    Need the cubicles too?

    Price toilet cubicles with this IPS behind them, sized and coloured to match.

    Build cubicles and IPS together
    About half height IPS

    Made-to-measure half-height IPS units in Standard (18mm MFC), Moisture-Resistant (18mm MR MFC) or Waterproof (13mm compact laminate) IPS: 1 to 6 sets, between walls, freestanding, into a corner, or L-shaped around a corner (4 to 6 sets).

    Half-height IPS: adjustable overall height 1250mm–1500mm, finished with a capping on top — for WC and urinal positions where the wall above stays tiled or painted. Made as Standard, Moisture-Resistant or Waterproof IPS. The visible IPS panels grow with the width: 100 mm flash gaps beside and between them, each panel 600–1400 mm wide (the drawing updates live).

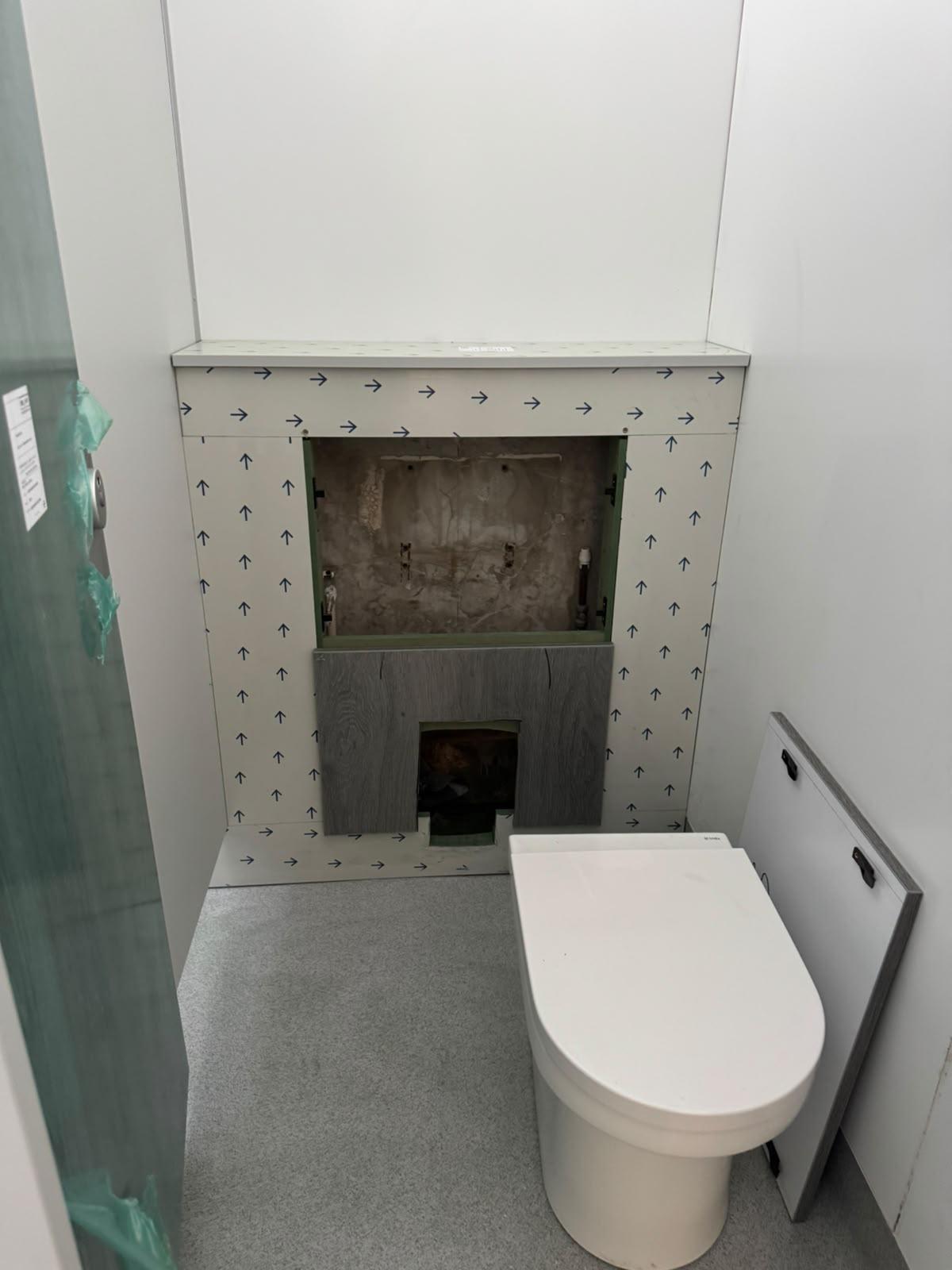

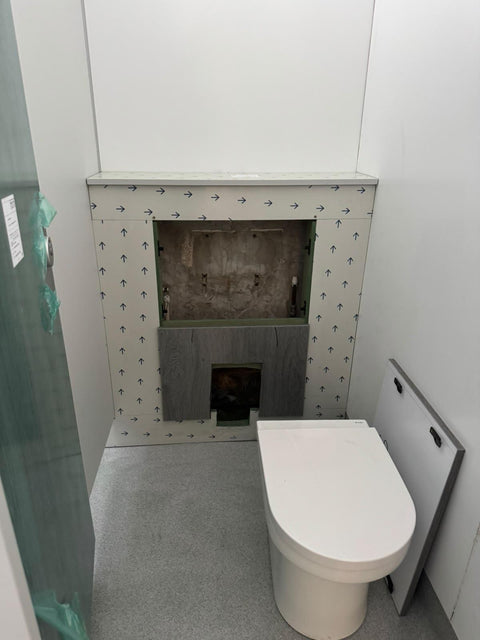

    Made-to-measure half height IPS duct panels for commercial washrooms. A lower IPS run, 1250 to 1500mm high and finished with a capping, that hides cisterns, pipework and services behind back-to-wall WCs and urinals while the wall above stays tiled or painted. Choose the Smart, Ascent MR or Alpine range, then configure 1 to 6 sets between walls, freestanding, into a corner or L-shaped around a corner (4 to 6 sets). The price updates as you build.

    Each unit arrives with the frame pre-assembled and the panels fixed, cutting install time on site. Side shadow gaps are supplied loose for scribing to out-of-square walls. Made to your dimensions in our Bolton factory and delivered free to UK mainland.

    Choose your range: Dry — 18mm MFC for dry areas, Damp — 18mm moisture-resistant MFC for damp, busy washrooms · Wet — compact grade laminate for wet rooms and changing areas. Ascent MR and Alpine also offer the Fundermax decors.

    Each kit includes: pre-assembled frame with panels fixed · IPS duct panels, cut and edged · capping · support battens and fixings pack · installation guide.

    Specification: overall height adjustable 1250–1500mm · two removable panel rows sized for WC or urinal positions · 120mm bottom shadow · 2mm ABS impact-resistant edging on MFC ranges · manufactured by Bridgewater Laminate Products Ltd.

    Questions or colour samples before you order — email sales@bridgewaterdirect.co.uk or call 0161 703 3980.

    What's included
    • Fast-fix system: each set arrives framed, with its access panels attached and the clips fitted
    • Shadow gaps arrive loose, to fit between and beside the panels on site
    • No service holes: your fitter cuts the openings for the sanitaryware on site
    • IPS duct panels — made to size & edged
    • Capping in the panel colour
    • Fixings pack
    • Installation guide
    Not supplied: studwork, battens, packers, sealant, plumbing or sanitaryware. We don't offer installation.

    In the box

    • IPS duct panels — made to your sizes & edged
    • Capping (in your panel colour)
    • Shadow gaps (loose)
    • Screws & fixings pack
    • SAA trims
    • Fitting instructions
    Delivery & installation

    Free delivery to UK mainland on a tracked service, typically 4–6 working days.

    Panels arrive cut, edged and finished with a capping in the panel colour. Fixings and a simple installation guide are included.

    Overview & sizes
    Half Height IPS Panel System | Made to Measure | Dry, Damp and Wet | 1–6 Sets
    In-between Walls · Integrated Plumbing System (IPS) duct panel
    Planner height range1250mm–1500mm overall
    LayoutIn-between Walls
    Top finishCapping in the panel colour
    Default size (overall)850mm × 1250mm
    Default panel face650mm wide
    Default depth150mm
    • Supplied cut and edged to your dimensions
    • 2mm ABS edging
    • SAA (Satin Anodised Aluminium) trims included
    • 18mm MFC (melamine-faced chipboard)
    1. Fixture type — choose WC (Toilet) or Urinal for the full run.
    2. Colours — pick your panel finish and shadow/frame colour.
    3. Measurements — enter overall size and depth.
    4. Review & Order — check your cut-list and add to basket.
    The diagram is a schematic — its proportions don't change, but the dimension labels update live with your inputs.

    Common questions

    How long before my IPS panel is delivered?
    Made in 3–5 working days, delivered in 1 working day to UK mainland on a tracked service.
    What measurements do I need?
    The overall width of the run, the overall height and the duct depth (how far the panels stand off the back wall), plus the return wall length for an L-shape. Enter them in Measurements and the drawing shows your exact sizes before you order. Not sure? Call us on 0161 703 3980 and we'll check them with you.
    Can I get help choosing the right IPS?
    Yes. Call 0161 703 3980 or email sales@bridgewaterdirect.co.uk with your room sizes and the fittings going in front, and we'll recommend a material and layout.
    Does the panel come ready to fit?
    Yes — panels are supplied cut, edged and pre-finished with a capping in the panel colour. Fixings and a simple installation guide are included.
    Which environments is this IPS suitable for?
    Standard IPS is 18mm MFC for dry washrooms. If the washroom is cleaned wet every day or gets splashed, choose Moisture-Resistant IPS; for showers, changing rooms or hosed-down areas, choose Waterproof IPS. Compare IPS materials.
    Can I get a sample colour before I order?
    Yes — we send the sample chart for this IPS material, not a physical board sample. Email the colours you want to compare.
    What if my measurements are out slightly?
    The flash gaps absorb small discrepancies (typically ±5mm). For anything bigger, call us before ordering.
