HTM 63 Laminate WorktopNHS Compliant - Cut to Size
From £640.00 exc VAT
An HTM 63 laminate worktop, made to your exact size for hospitals, laboratories and treatment rooms. A 55mm chipboard core faced in hard-wearing high-pressure laminate, with a 50mm integral rear upstand that forms a clean, sealed junction against the wall for day-to-day cleanability.
Widths from 400mm to 2900mm and depths from 400mm to 900mm, cut to the millimetre and capped at both ends, in six stocked colours. Manufactured in our Bolton workshop with free UK mainland delivery.
Full specification
What HTM 63 means
HTM 63 is the NHS reference for joinery products in healthcare settings. It covers hygienic worktop and wall-junction detailing — sealed junctions that do not trap moisture or bacteria, smooth non-porous surfaces that are easy to disinfect, and construction that stands up to frequent cleaning. This worktop is built to that specification. Full compliance on site also depends on the installation: wall condition, sealant choice, cut-outs, joints and workmanship.
Typical applications
- Wards and treatment rooms
- Clinical WCs and wash areas
- Laboratories and clean working areas
- NHS and private healthcare facilities
- Consulting and examination rooms
What you get
- 55mm chipboard core faced in high-pressure laminate
- 50mm integral rear upstand
- Both ends capped
- Cut to the millimetre
- Six stocked colours
- Free UK mainland delivery
Choose Colour
Laminate colour
Choose Size
Please enter a size within the allowed range.

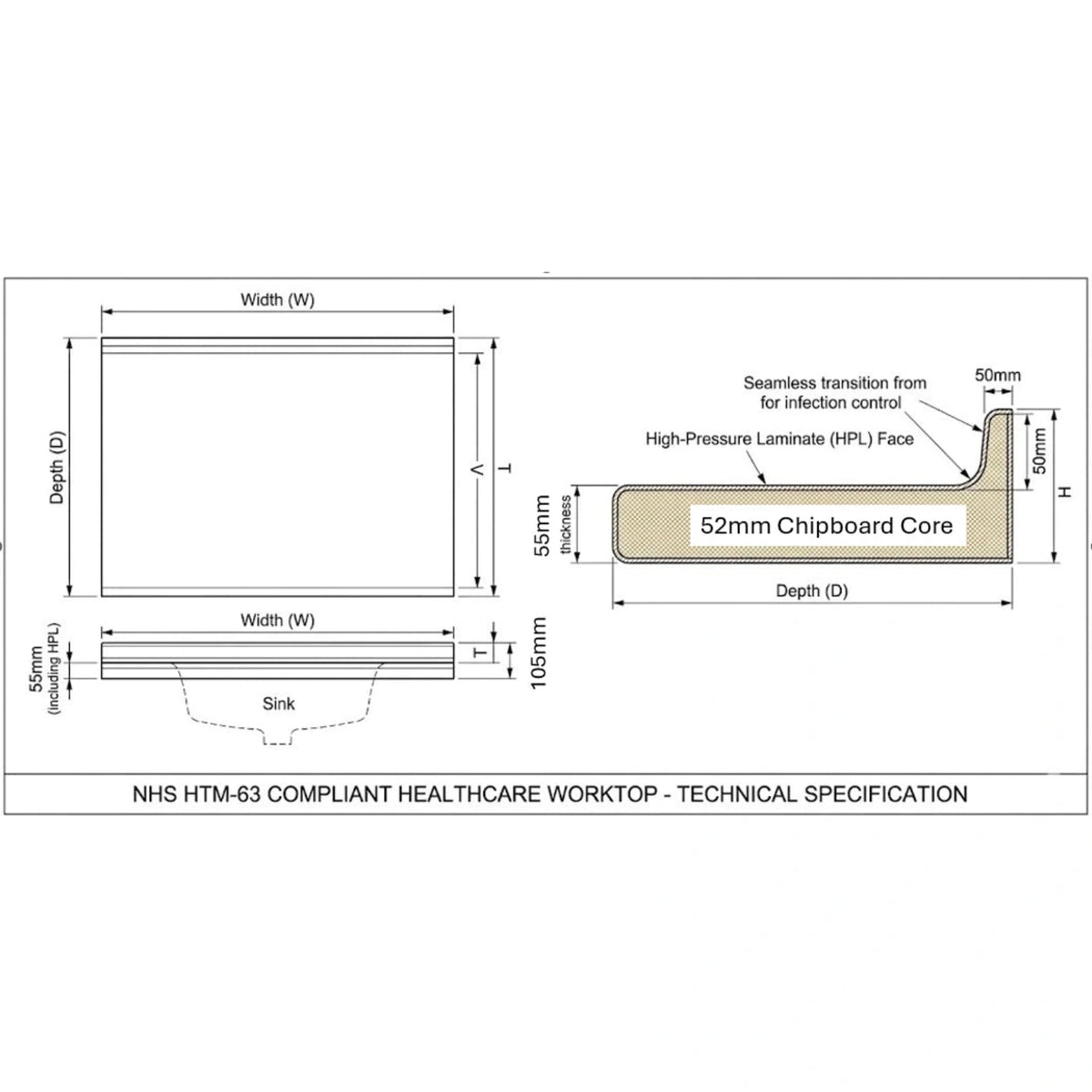

Size diagram
What is HTM 63?
HTM 63 is the NHS reference for joinery products in healthcare settings. It sets out how worktops and wall junctions should be detailed so they can be cleaned and disinfected properly.
Is this worktop HTM 63 compliant?
It is manufactured to HTM 63 specification. Compliance on site is achieved by the product together with the installation method — wall condition, sealant choice, cut-outs, joints and workmanship. Tell us the room type and layout and we will advise on the correct detail.
How is this different from your integral coved upstand worktop?
This one has a 55mm core and a 50mm rear upstand, built to HTM 63 specification. The coved upstand worktop has a 40mm core and a 75mm coved upstand, and is not supplied as an HTM 63 product. It costs less.
What is it made from?
A 55mm chipboard core faced in high-pressure laminate, with a 50mm integral rear upstand and both ends capped.
What sizes can I order?
Widths from 400mm to 2900mm and depths from 400mm to 900mm, to the millimetre.
Where is it typically used?
Wards, treatment and consulting rooms, clinical WCs and wash areas, laboratories and clean working areas.
How do I measure for a run of worktop?
Measure wall to wall at the back, then front to back at the deepest point. Send us your measurements, wall run layout and any cut-outs and we will confirm the detail before manufacture.
Can I order more than one worktop?
Yes. Use "Add another worktop" to build several sizes into one order.
What colours are available?
Six: BD White, BD Dove Grey, BD Graphite, BD Natural Oak, BD Pearl Stone and BD Slate Stone.
- 50mm integral rear upstand — sealed junction against the wall
- Non-porous high-pressure laminate, suitable for frequent disinfection
- 55mm chipboard core, both ends capped
- Made to your room dimensions and wall runs, cut to the millimetre
- Six stocked colours
Important: Compliance is achieved by the product + the installation method (wall condition, sealant choice, cut-outs, joints and on-site workmanship). If you need assurance for a specific project, tell us the room type and layout and we’ll advise on the correct detail.
Read the guide: What is HTM 63 and how does it relate to worktops?
Need a different style of worktop, see our collection here
