Public Buildings
Public Toilet Cubicles
Hard-wearing cubicles for busy washrooms, made to measure in the UK
Toilet cubicles for council buildings, transport facilities, visitor centres, community buildings and public conveniences. Choose moisture-resistant or solid compact laminate, and price your layout online.
- UK manufactured in Bolton
- Made to measure
- Instant online pricing
- Free UK mainland delivery
Cubicles for high-footfall public washrooms
Public washrooms are cleaned wet and used hard. These three ranges cover most of them, from council offices to public conveniences.
-
Ascent Range
18mm moisture-resistant MFC · Dry and damp areas
- Suited to
- Council offices, libraries and community buildings cleaned wet daily
- Key feature
- 18mm moisture-resistant board, decorative on both faces, in 21 finishes
From £260 + VAT
Configure & price -
Alpine Range
13mm compact grade laminate · Wet areas
- Suited to
- Public conveniences, transport and very high-footfall washrooms
- Key feature
- Solid compact laminate: damage doesn't expose a chipboard core
From £460 + VAT
Configure & price -
Summit Range
13mm compact grade laminate · Wet areas
- Suited to
- Busy washrooms that need full privacy
- Key feature
- Floor to ceiling, U-channel fixed: no legs and no open top
From £622.25 + VAT
Configure & price
From prices are for one cubicle fitted between two walls, in a single door colour, exc VAT. Your layout, sizes and colours are priced instantly in the configurator.
Choosing cubicles for public buildings
Footfall, cleaning and the risk of misuse matter more here than in most buildings.
High footfall and misuse
Where washrooms are very busy or misuse is a risk, compact grade laminate is the more durable choice: it is solid all the way through and very impact resistant, so damage doesn't expose a chipboard core. We don't publish a tested vandal-resistance rating.
Cleaning and moisture
Most public toilets are mopped daily, which suits 18mm moisture-resistant MFC (Ascent). Washrooms that are hosed down, or next to showers, need 13mm compact grade laminate (Alpine or Summit).
Privacy
Standard cubicles are 1950mm high with a 150mm floor gap. Summit (compact laminate) and Ridge (moisture-resistant MFC) run floor to ceiling, 2100–2700mm, with an overhead panel above each door and only a 10mm clearance under the doors.
Replacement components
Doors, partitions, pilasters and hardware can be replaced individually, to match existing systems, so a damaged cubicle can go back into service without replacing the run.
Whole-life value
Compact laminate costs more per cubicle, so price both boards in the configurator. In washrooms that are hosed down or heavily used, compact laminate is the board made for those conditions; elsewhere, moisture-resistant MFC is the economical choice.
Our cubicles and IPS in busy washrooms
Genuine photos of Bridgewater cubicles and IPS. They show the ranges we recommend; not every photo is a public building.
-
Ascent Range18mm moisture-resistant MFC · blue doors · busy washroom -

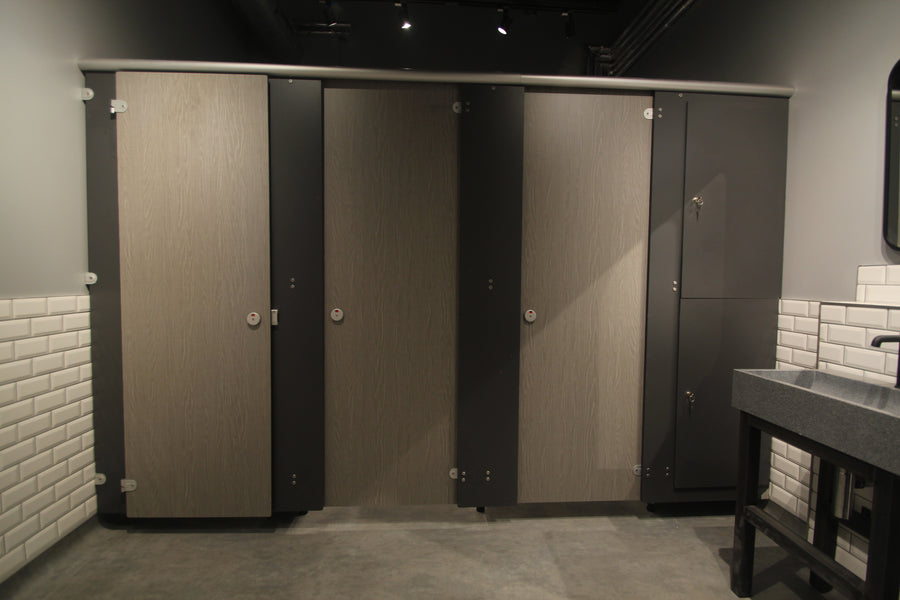

Alpine Range13mm compact grade laminate · dark grey -

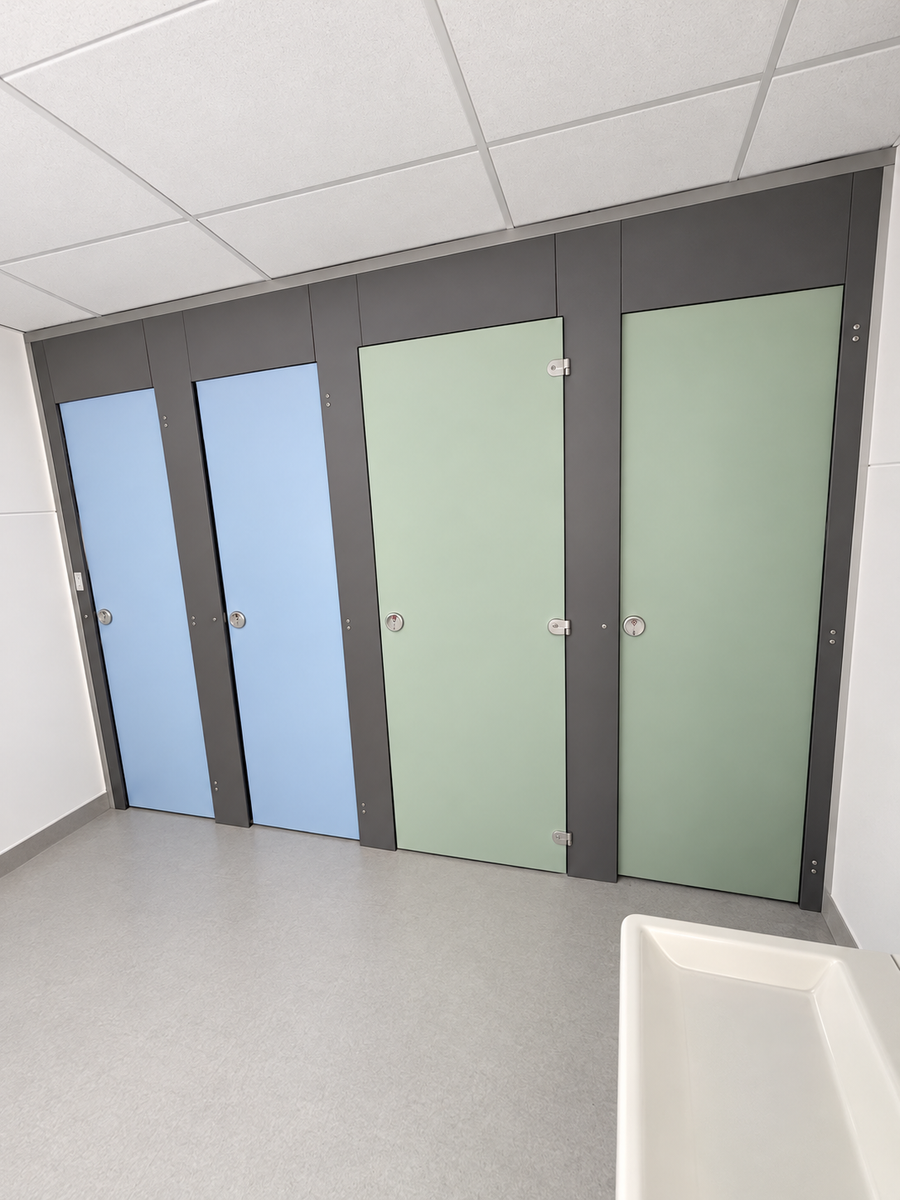

Summit RangeFloor-to-ceiling compact laminate -

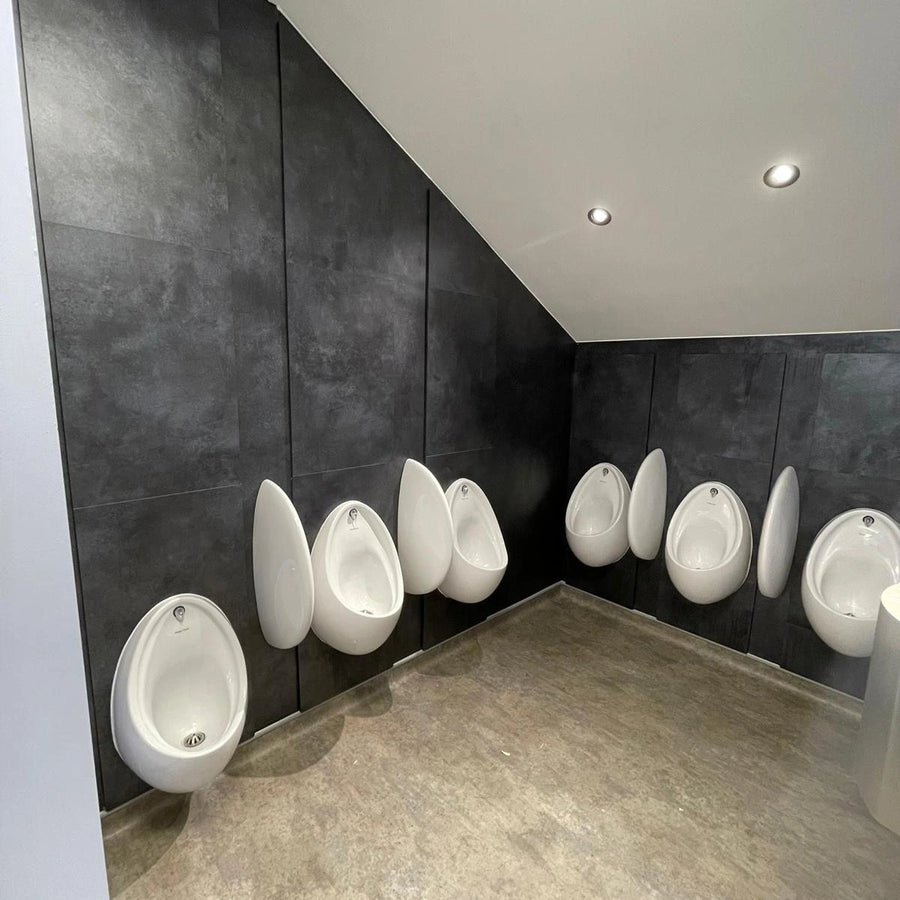

Urinal IPS at a sports stadiumGrey finish · long urinal run
Complete your public washroom
IPS duct panels hide cisterns and pipework behind a flush, wipe-clean face, and vanity units are made to your basin run.
IPS duct panels

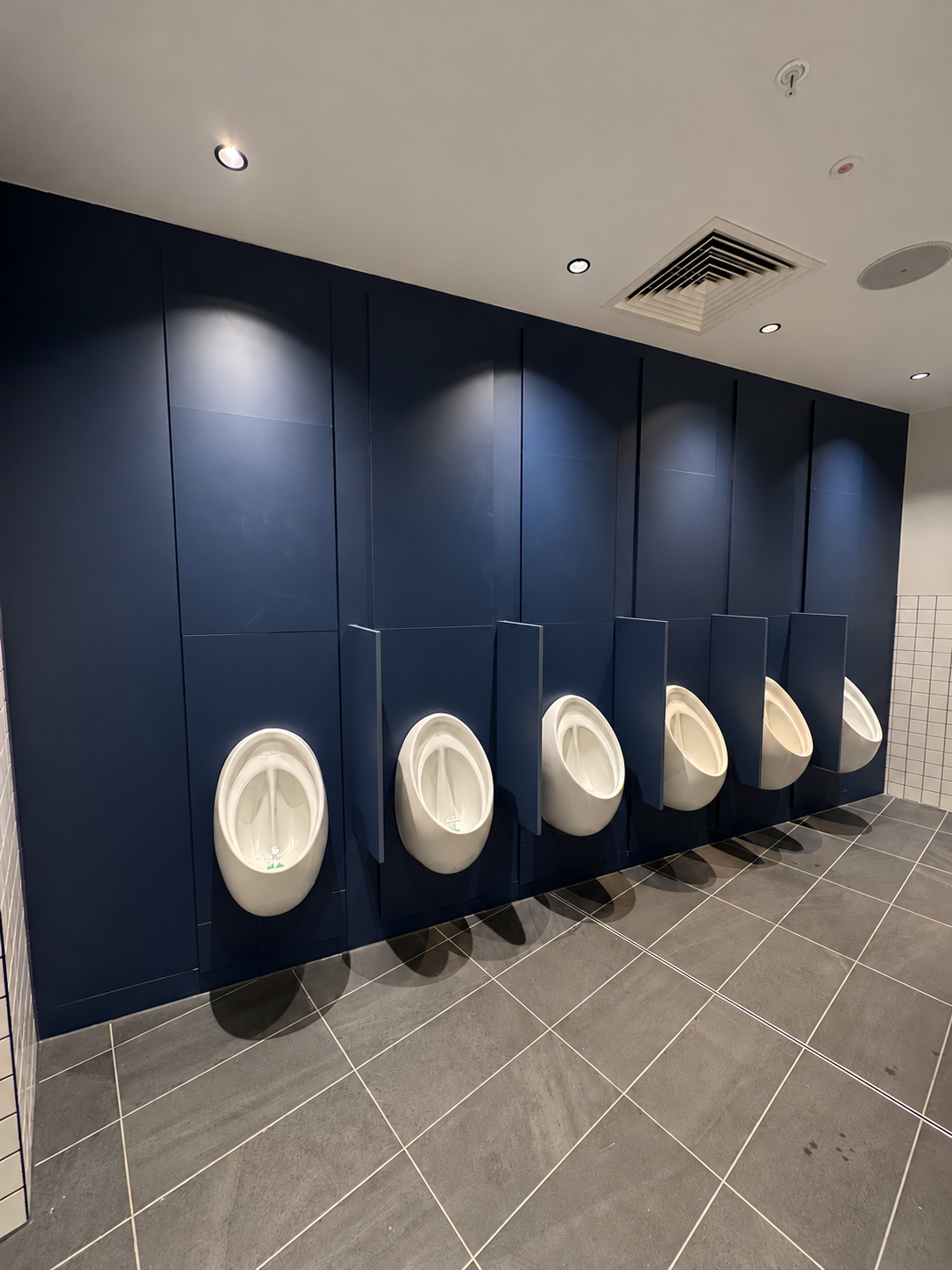

Moisture-Resistant IPS for washrooms mopped daily; Waterproof IPS where they are hosed down or stay wet. Urinal runs can include privacy panels between urinals.
- Moisture-Resistant IPS Damp environments · 18mm moisture-resistant MFC, 2mm ABS edgingFrom £400 + VAT per set
- Waterproof IPS Wet environments · 13mm compact grade laminate, machined edgeFrom £450 + VAT per set

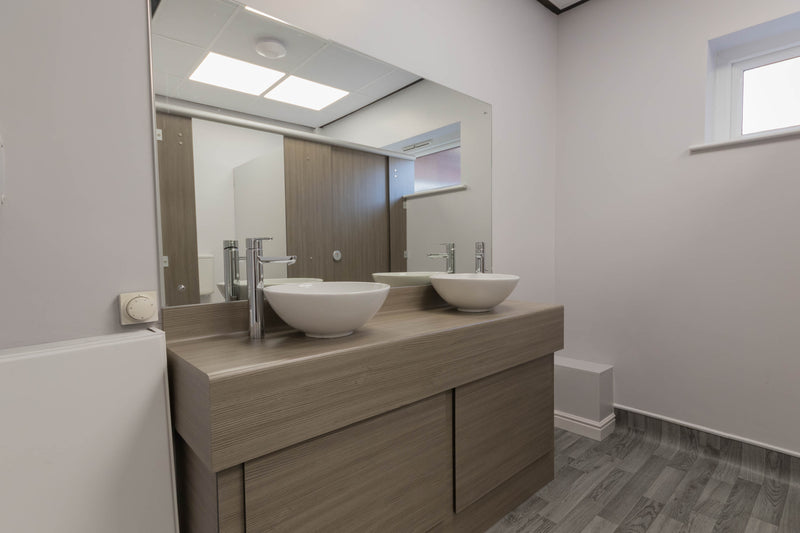

Vanity units
Vanity units made to your width, for one to six basins.
From £450 + VAT for a single-basin unit
View vanity unitsPlanning a whole washroom?
Price cubicles, IPS and vanity units together in the Washroom Builder, with a drawing and a downloadable spec sheet.
Technical information for public buildings
- Materials CGL or MFC toilet cubicles?Which board suits which washroom
- Materials Laminate grades explainedMFC, moisture-resistant MFC and compact laminate compared
- Guide Toilet cubicle dimensionsHeights, depths and door sizes for every range
- Regulations UK toilet cubicle regulationsApproved Document T and the standards specifiers use
- Planning How many toilets does a building need?Provision guidance and where the figures come from
- Download Cubicle installation guide (PDF)Assembly and fixing instructions for fitters
- Spares Replacement cubicle partsDoors, partitions, pilasters and hardware
General guidance, not a compliance statement
This page is general product guidance. We don't publish a tested vandal-resistance rating for our cubicles. Building control, accessible provision and fire strategy should be confirmed by the design team for your building. Fire performance depends on the laminate and core specified for the job, so we do not publish a blanket rating. Tell us what the specification or fire strategy calls for and we will confirm what we can supply for that exact board.
Company accreditations
These cover Bridgewater Direct as a company. They are not product certifications.
Common questions
Which cubicles are best for a public toilet?
For washrooms mopped daily, Ascent (18mm moisture-resistant MFC). For very high footfall, misuse risk, or washrooms that are hosed down, Alpine (13mm compact grade laminate), or Summit if you want floor to ceiling.
Are your cubicles vandal resistant?
We don't publish a tested vandal-resistance rating. Compact grade laminate (Alpine and Summit) is the most durable board we make: it is solid all the way through and very impact resistant. Tell us about the risks on your site and we'll advise.
Can we have floor-to-ceiling cubicles?
Yes. Summit (compact laminate) and Ridge (moisture-resistant MFC) run floor to ceiling, 2100–2700mm, fixed with U-channel at the floor, walls and ceiling, with an overhead panel above every door.
Can damaged doors be replaced?
Yes. Replacement doors, partitions and pilasters are made to match existing systems, and cubicle hardware is sold separately, so a damaged cubicle can be repaired rather than the whole run replaced. See replacement parts, or send us the sizes, hinge and lock positions and a photo of the fixings.
Do you supply councils and public sector buyers?
Yes. We supply public sector buyers and the contractors working for them, and hold Constructionline Gold and SSIP accreditation. Use the quotation form to send a specification or drawings.
Are the cubicles made to measure?
Yes. Doors, partitions and pilasters are cut to the sizes you enter in the configurator, in runs of one to six cubicles between walls, into a corner or freestanding. There is no standard size and no cutting down on site, and the price updates as you go.
How quickly can you deliver?
Cubicles are made in 3–5 working days and delivered in 4–6 working days from order, free to the UK mainland. We agree the despatch date before manufacture starts. Any Highlands, Islands or Northern Ireland surcharge is confirmed before anything is made.
Do you install?
No. We manufacture and supply the cubicles rather than installing them. Every order comes with the fixing details, hardware and setting-out information your fit-out team needs, and the installation guide covers assembly.
Ready to plan your public washroom?
Configure cubicles online for an instant price, or send us your drawings and we'll quote the project.
Or call 0161 703 3980
