Alpine IPS Duct Panel System | Made to Measure | Compact Laminate

£450.00 exc VAT

Waterproof IPS · Wet environments · Full height

In-between Walls · Made to measure Free UK delivery · 4–6 working days · Made in Bolton since 1998

Need help choosing? Call 0161 703 3980

Layout & number of sets

Choose how many IPS sets you need (1–6), then your installation configuration. Price and product image update instantly.

Number of sets
Installation configuration
What do these configurations mean?
In-between Walls
Fits between two existing walls — measure the clear alcove span.
Freestanding
Self-supporting with end returns; can stand away from walls.
Into Left Corner
Fixes to the left wall; open on the right.
Into Right Corner
Fixes to the right wall; open on the left.
L-shape (Left / Right Corner)
Wraps a corner: the larger half of the sets runs along the back wall and the rest along the left or right return wall. Available for 4, 5 or 6 sets.
Price updates when you change layout or set count. Next: choose Toilet / Wash Hand Basin, Urinal or Shower.

Fixture type

Choose whether this IPS run is for toilet / wash hand basin, urinal or shower bays. The same fixture type applies to every set in the order — the diagram updates to match.

Fixture type
Next step: choose panel and frame colours.

Colours

Panel colour

Shadow / frame colour

Choose panel and surround finishes independently.
Screen colours & hex codes are indicative only — monitor variation is normal; request this range's sample chart before final sign-off.

Measurements

Snaps to 50mm increments.
Total external height including the 85mm frame top and bottom. Adjustable in this planner from 2400mm to 2750mm (ideal when you have at least ~2.4 m ceiling-to-floor clearance). The strip at the top takes whatever the panel heights below leave.
From the panel face back to the wall, 100–500 mm. Under 250 mm, make sure there is room for the frame and your pipework.
Check your cistern, valves and pipework fit in the depth you choose. Under 250mm there is less room behind the panels for the frame and your pipework.
Advanced: panel width and panel heights
Panel heights (mm)
Diagram labels update live as you type — shape stays the same so you can compare at a glance.

Summary

Your breakdown
    Anything we should know — delivery access, install date, special cut requests.

    Each IPS panel is made to order from your measurements — please double-check dimensions before submitting. As a bespoke item, the 14-day returns right does not apply.

    £450.00 exc VAT
    ✓ Free UK delivery · Typical lead time 4–6 working days

    Need the cubicles too?

    Price toilet cubicles with this IPS behind them, sized and coloured to match.

    Build cubicles and IPS together
    About Waterproof IPS

    Made-to-measure IPS units in 1 to 6 sets: between walls, freestanding, into a corner, or L-shaped around a corner (4 to 6 sets).

    Adjustable overall height typically 2400mm–2750mm in our planner — designed for circa 2400 mm ceiling installs and above. The visible IPS access panels are a standard 650 mm (600 mm where the width is too tight), with the shadows beside and between them taking the rest of the width, at least 100 mm each (the drawing updates live). Depth is 250–500 mm, panel face to wall, on every layout.

    Made-to-measure IPS panel systems for commercial washrooms. Our K32 IPS units conceal plumbing and services behind a clean, hygienic, removable panel face — configure 1 to 6 sets in six layouts (In-between Walls, Freestanding, Into Left Corner, Into Right Corner, plus L-Shape Into Left or Right Corner on 4–6 sets), for WC or urinal, and the price updates as you build.

    Specified for wet areas. Alpine is 13mm compact grade laminate — solid all the way through, with no chipboard or MDF core to absorb water. It will not swell, delaminate or blow at a cut edge, which makes it the range to specify for pools, gyms, changing rooms, sports pavilions and any washroom that gets hosed down. Where MFC and MR MFC eventually fail in standing water, compact laminate doesn't.

    Each set arrives framed, with its access panels attached and the clips already fitted, cutting install time on site. On a toilet or basin set the top panel is hook-on, the middle panel push-on and the bottom panel fixed; on a urinal set the middle panel is fixed and the bottom panel push-on; on a shower set both panels come off, a hook-on top panel over a push-on valve access panel. Side shadow gaps are supplied loose for scribing to out-of-square walls. The panels arrive without service holes: your fitter marks and cuts the openings for the pan, flush plate, taps, wastes and shower valve on site. Compact laminate is very dense, so use carbide-tipped blades and hole saws. Made to your dimensions in our Bolton factory and delivered free to UK mainland in 4–6 working days.

    Each kit includes: framed set with the access panels attached and clips fitted · IPS duct panels, made to size with machined edges · surround frame · loose shadow gaps · fixings pack · installation guide.

    Specification: 13mm compact grade laminate, solid black core, decorative finish both sides · machined eased edge, self-finished — no applied edging required · satin anodised aluminium (SAA) fittings · height adjustable 2400–2750mm · available in Fundermax, Polyrey and Pfleiderer decors · manufactured by Bridgewater Laminate Products Ltd.

    Questions or colour samples before you order — email sales@bridgewaterdirect.co.uk or call 0161 703 3980.

    What's included
    • Fast-fix system: each set arrives framed, with its access panels attached and the clips fitted
    • Shadow gaps arrive loose, to fit between and beside the panels on site
    • No service holes: your fitter cuts the openings for the sanitaryware on site
    • IPS duct panels — made to size & edged
    • Surround frame
    • Fixings pack
    • Installation guide
    Not supplied: studwork, battens, packers, sealant, plumbing or sanitaryware. We don't offer installation.

    In the box

    • IPS duct panels — made to your sizes & edged
    • Surround frame, assembled with the access panels attached
    • Shadow gaps (loose)
    • Screws & fixings pack
    • SAA trims
    • Fitting instructions
    Delivery & installation

    Free delivery to UK mainland on a tracked service, typically 4–6 working days.

    Panels arrive cut, edged and finished with the 85mm surround frame. Fixings and a simple installation guide are included.

    Overview & sizes
    Alpine IPS Duct Panel System | Made to Measure | Compact Laminate
    In-between Walls · Integrated Plumbing System (IPS) duct panel
    Planner height range2400mm–2750mm overall
    LayoutIn-between Walls
    Surround frame85mm all-round
    Default size (overall)850mm × 2400mm
    Default panel face650mm wide
    Default depth250mm
    • Supplied cut and edged to your dimensions
    • Machined eased edge, no applied edging
    • SAA (Satin Anodised Aluminium) trims included
    • 13mm compact grade laminate (solid core)
    1. Fixture type — choose Toilet / Wash Hand Basin, Urinal or Shower for the full run.
    2. Colours — pick your panel finish and shadow/frame colour.
    3. Measurements — enter overall size and depth.
    4. Review & Order — check your cut-list and add to basket.
    The diagram is a schematic — its proportions don't change, but the dimension labels update live with your inputs.

    Specification downloads

    One-page NBS K32 specification for architects and contractors, ready to copy into a project specification.

    • Waterproof IPS (wet areas) PDF Word

    Common questions

    How long before my IPS panel is delivered?
    Made in 3–5 working days, delivered in 1 working day to UK mainland on a tracked service.
    What measurements do I need?
    The overall width of the run, the overall height and the overall depth (from the panel face back to the wall, 100–500mm: under 250mm, make sure there is room for the frame and your pipework), plus the return wall length for an L-shape. Enter them in Measurements and the drawing shows your exact sizes before you order. Not sure? Call us on 0161 703 3980 and we'll check them with you.
    Can I get help choosing the right IPS?
    Yes. Call 0161 703 3980 or email sales@bridgewaterdirect.co.uk with your room sizes and the fittings going in front, and we'll recommend a material and layout.
    Does the panel come ready to fit?
    Yes — panels are supplied cut, edged and pre-finished with the 85mm surround frame. Fixings and a simple installation guide are included.
    Which environments is this IPS suitable for?
    Waterproof IPS is 13mm compact grade laminate, solid through its thickness with a machined edge, for showers, changing rooms and areas that are hosed down or stay wet. Compare IPS materials.

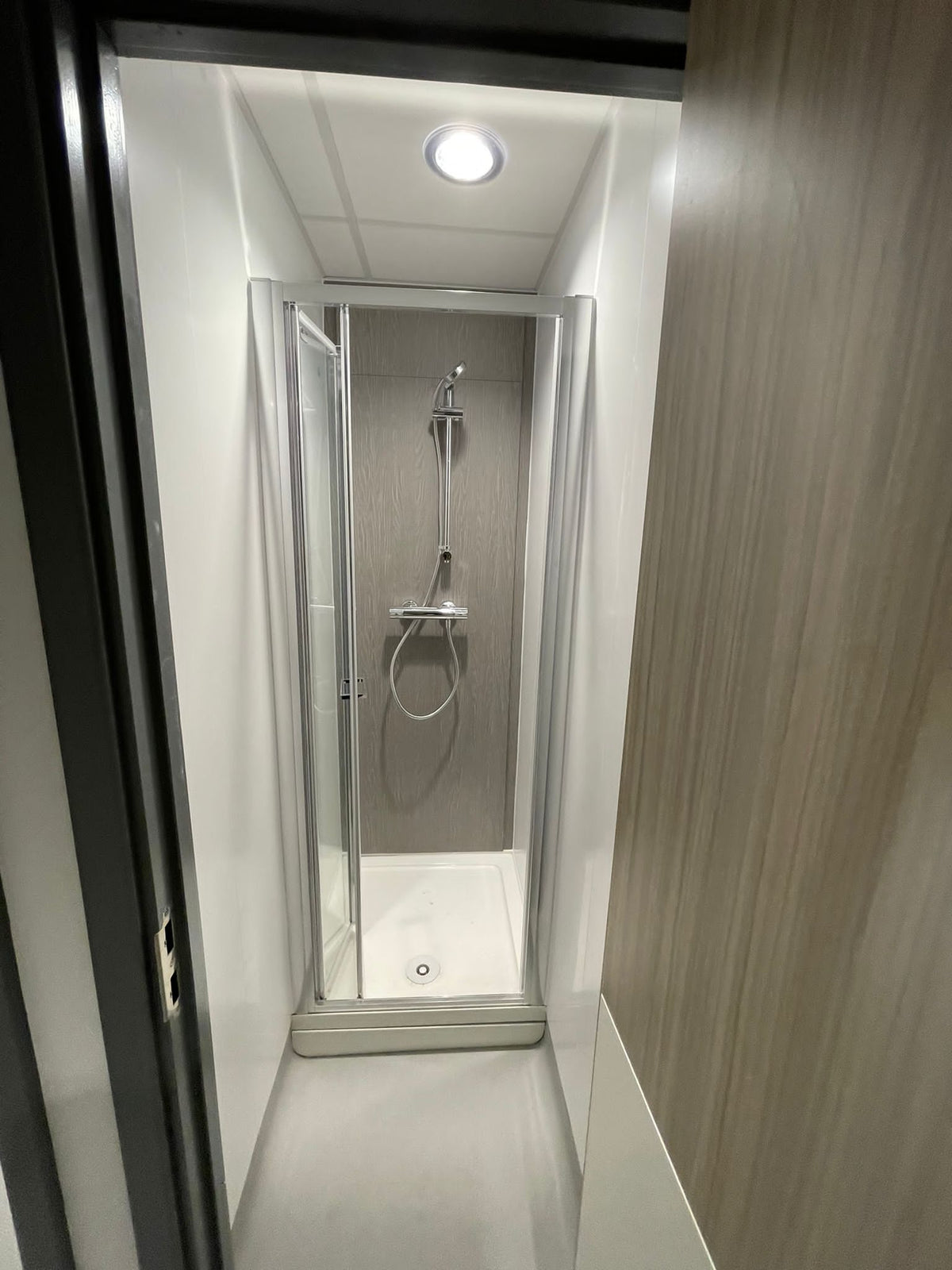

    Do you make shower IPS?
    Yes. Choose Shower as the fixture type: each set has a 1500mm push-on bottom panel, which comes off for access to the valve, under a 600mm hook-on top panel. You can change both heights in Measurements. All panels are 13mm compact grade laminate that is solid through its thickness, so it will not swell in a shower. Panels arrive plain; your installer cuts the holes for the valve and shower outlet on site.
    Can I get a sample colour before I order?
    Yes — we send the sample chart for this IPS material, not a physical board sample. Email the colours you want to compare.
    What if my measurements are out slightly?
    The 85mm surround frame absorbs small discrepancies (typically ±5mm). For anything bigger, call us before ordering.
