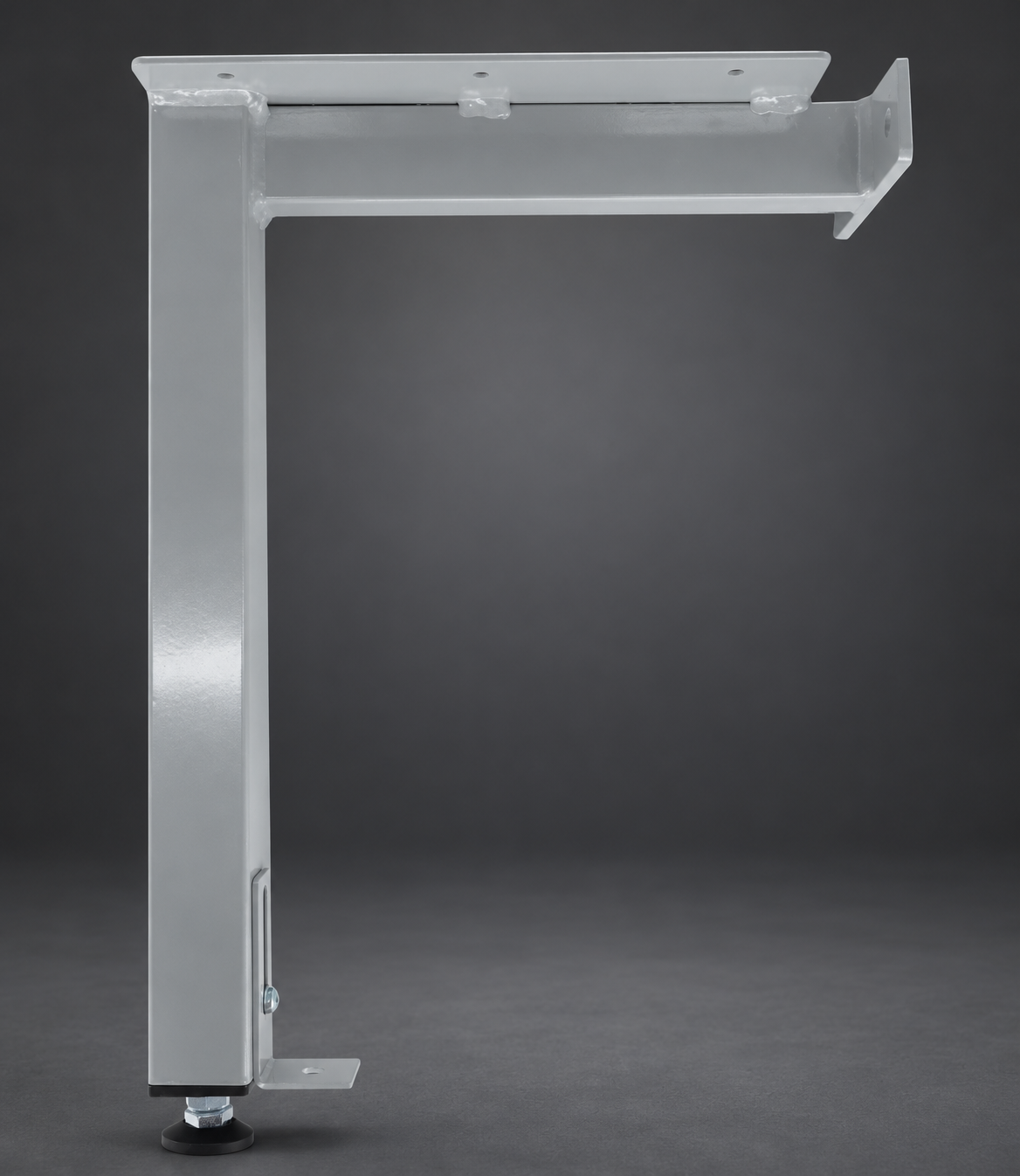

Wall and Floor Fixed L-Shape Bench Bracket

Steel L-shape bracket for building wall-mounted commercial changing room benches. Fixes to the wall with a single integral support leg down to the floor, suitable for wet or dry changing areas.

Made from steel box section with a two-stage powder-coat finish (anti-corrosion epoxy primer plus grey RAL 9006 top coat) for long service life in damp environments. Other RAL colours available on request.

• Up to 3 slat fixing positions per bracket
• Takes timber slats or solid grade laminate (SGL) seat panels — sold separately
• Height-adjustable foot and L-shaped floor anchor bracket included
• Position brackets at maximum 750mm centres, with slats overhanging the frame by approx. 125mm

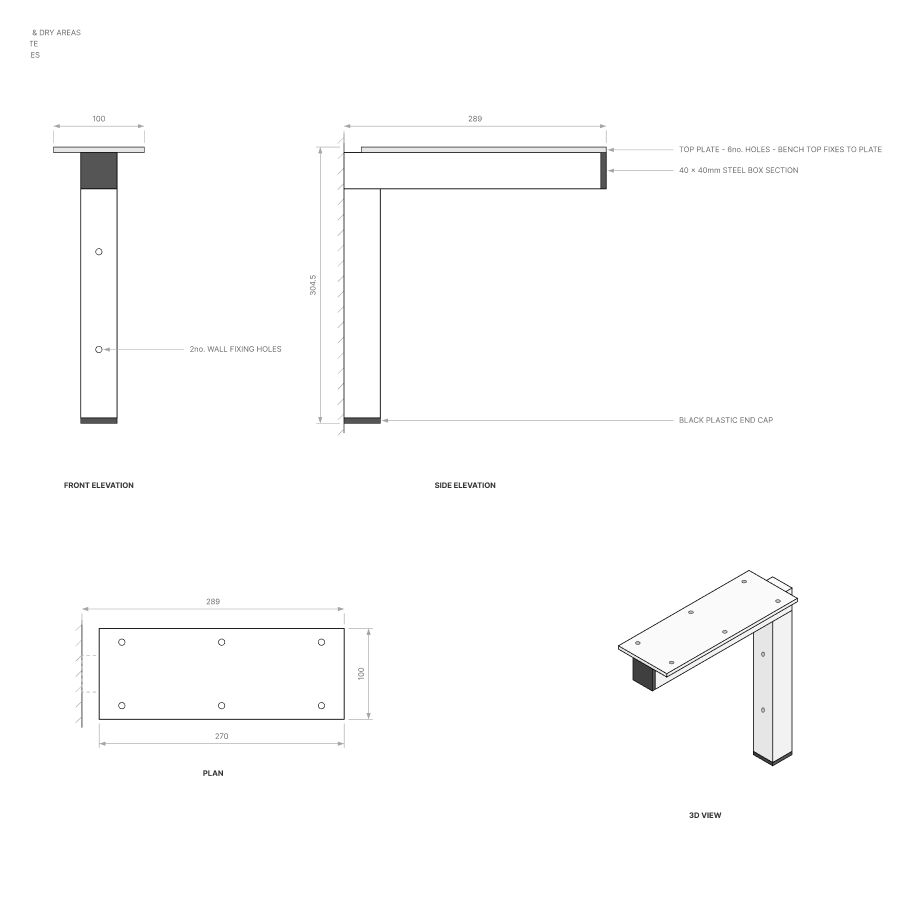

Dimensions

• Height: 397.5mm (400mm including adjustable foot)
• Projection from wall: 295mm (builds a bench approx. 300mm deep including slat overhang)
• Slat plate width: 100mm

Price is per bracket only. Seat slats and wall/floor fixings are not included.
