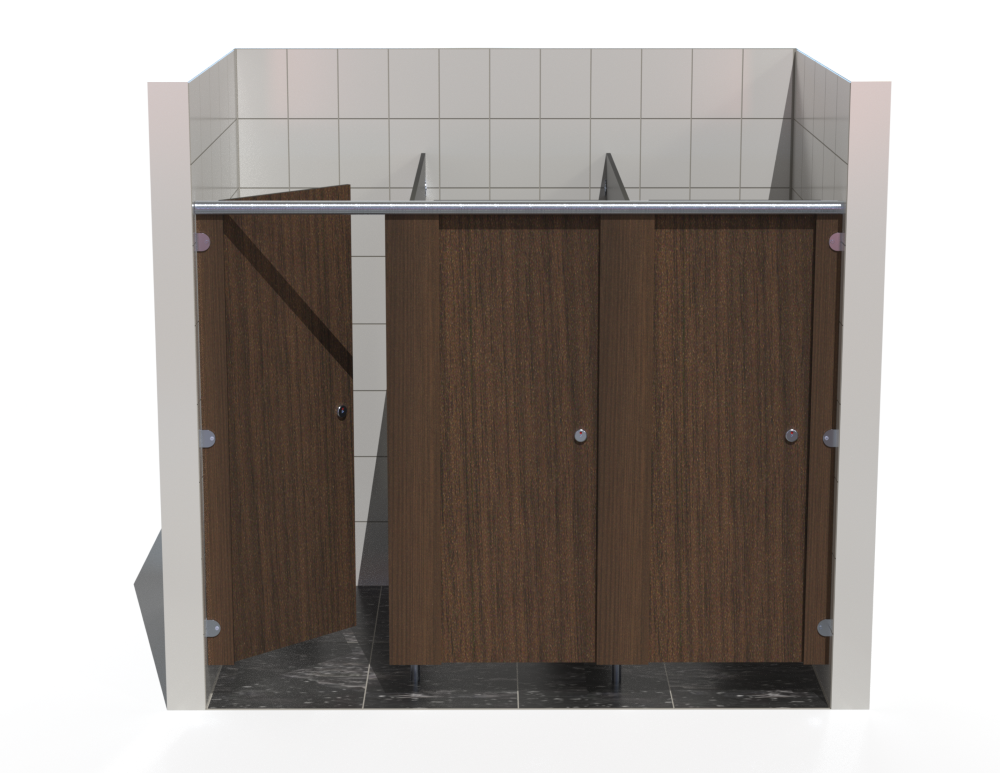

3 Cubicles (In-Between Walls) - Compact Grade Toilet Cubicles – Alpine Range

£1,800.00 Exc VAT £2,160.00 inc VAT

Our Alpine Range CGL Toilet Cubicles in a “3 Inbetween Walls Toilet Cubicles” layout provide a premium, heavy-duty solution for high-traffic commercial, public, and hospitality environments.Manufactured from 13mm...

Read more

Our Alpine Range CGL Toilet Cubicles in a “3 Inbetween Walls Toilet Cubicles” layout provide a premium, heavy-duty solution for high-traffic commercial, public, and hospitality environments.

Manufactured from 13mm High-Density Compact Grade Laminate (CGL) with a decorative finish on both sides, the Alpine range offers exceptional durability, hygiene, and moisture resistance—making these the ideal commercial toilet cubicles for demanding spaces. Every panel features a polished crescent radius edge for a refined appearance and improved impact performance.

With an overall height of 1950mm and 150mm floor clearance, this 5-unit arrangement delivers a robust, modern toilet cubicle layout while maintaining easy floor cleaning access. The system is completed with satin anodised aluminium (SAA) fittings supplied as standard, ensuring a consistent, high-quality finish across all five doors and partitions.

Specification / Key Features:

  • System: Alpine Range CGL Toilet Cubicles
  • Manufacturer: Bridgewater Laminate Products Ltd
  • Layout: 3 Inbetween Walls Toilet Cubicles
  • Material: High-Density Compact Grade Laminate (CGL), decorative finish both sides
  • Panel Thickness: 13mm
  • Edge Treatment: Polished crescent radius edge
  • Overall Height: 1950mm
  • Maximum Depth: 1800mm
  • Floor Clearance: 150mm
  • Colour / Finish: TBC (To Architect’s / Client selection)

Fittings: Satin Anodised Aluminium (SAA) included as standard

For technical advice or a quote on our toilet cubicle systems, please email the team at sales@bridgewaterlaminates.co.uk

Free UK delivery — typical 7 working days | UK manufactured since 1995
Trusted by NHS, schools, councils & leisure
Order placed Today
Manufacture 3–5 working days
Dispatched Tracked UK
Delivered Within 7 working days
3 Cubicles (In-Between Walls) - Compact Grade Toilet Cubicles – Alpine Range

Overview

3 Cubicles (In-Between Walls) - Compact Grade Toilet Cubicles – Alpine Range
Alpine Range · 3 cubicles · In-between two walls
Cubicles3
Layout typeIn-between two walls
RangeAlpine
Overall height1950mm
Default depth1800mm
  • Supplied cut and edged to your dimensions
  • 1mm ABS edging on all exposed edges
  • SAA (Satin Anodised Aluminium) fittings included
  • Moisture-resistant MFC panels
  1. Colours — pick door & partition finishes.
  2. Measurements — enter your wall-to-wall width and depth.
  3. Review & Order — check your cut-list and add to basket.
Use the Front / Plan tabs on the preview to check drawings as you build.

Colours

Door colour

Pilaster & partitions

Measurements

Measure wall-to-wall of the space you're fitting.
Internal depth of each cubicle, front-to-back.
Floor-to-top of the cubicle. Adjustable between 1850mm and 1950mm (default 1950mm).
Door hinge & swing Hinge = which side the door pivots on. Swing = direction the door opens.
Set all hinges:
Set all swings:

Summary

Your breakdown
    Anything we should know — delivery access, install date, special cut requests.

    Each cubicle is made to order from your measurements — please double-check dimensions before submitting. As a bespoke item, the 14-day returns right does not apply.

    ✓ Free UK delivery · Typical lead time 7 working days

    Common questions

    How long before my cubicles are delivered?
    Most cubicle orders are manufactured within a few working days and delivered to UK mainland within 7 working days on a tracked service. Large orders or tricky access may take a little longer — we'll confirm on your order.
    Do the panels meet fire regulations?
    Our standard MFC core is moisture-resistant and suitable for most commercial washrooms. If you need full fire-rating compliance (Class B, EN 13501-1), see our fire ratings & compliance guide or contact us and we'll spec the correct core for your build.
    Do you offer installation?
    We supply cubicles flat-packed for self-install with full instructions. Installation isn't offered directly, but we can recommend trusted fitters across the UK — just get in touch.
    Can I get a sample colour before I order?
    Yes — samples can be posted out on request. Drop us an email with the colours you'd like to compare and we'll send them same-day where possible.
    What if my measurements are out slightly?
    Our cubicles use adjustable pilasters that absorb small discrepancies (typically ±10mm). For anything bigger, call us before ordering and we'll advise on the best approach.
    Delivery to Scotland, N. Ireland or the Islands?
    Mainland Scotland is included in our free delivery. Highlands & Islands, Isle of Wight and Northern Ireland may incur a small surcharge — please contact us for a quote before ordering.
